THE FAB2
State-of-the-art haze generator.

State-of-the-art haze generator.
Creates the atmospheric effect necessary for an appealing light show.

PDF fileManual (English)


FEATURESSPECIFICATIONSGALLERYRELATED PRODUCTS

FEATURES
Fine haze that lasts a very long time


• Offers a wide range of applications to enhance your lighting effects.
• Used to generate haze, creating the atmospheric effect necessary for an appealing light show.
• A newly developed, vegan, highly concentrated fluid is used.
• The finest droplets with maximum airborne durability.
• Two extremely quiet and adjustable fans.
SPECIFICATIONS
State-of-the-art haze generator


Device type
Haze machine with directly heated evaporator
Performance
100-240V~, 50-60 Hz, 500 W (PowerCON TRUE1)
Heating time
Approx. 8 sec.
Fluid consumption
Up to 4ml/min
Tank capacity
1 liter
Operation
2.8" TFT display with capacitive touch panel
Interfaces
5-pin XLR In/Out, 2x RJ45
Air volume of the fans
200 m³/h
Air deflector
Motor-adjustable
Fume emissions
Adjustable 1-100% in 1% increments
Fan speed
Adjustable 1-100% in 1% increments
Support protocols
DMX512, RDM, JT-Remote, sACN, Art-NetTM
Control
DMX/RDM, wired remote control, wireless remote control, Ethernet, stand-alone
Accessories (option)
Radio remote control, cable remote control
Ethernet
10/100MBit including 2-port switch
Integrated batteries
4x NiMH batteries for configuration without power cable
Fluid types
Base*V, Base*B
Dimensions
19" flight case with 2U
Weight
16,8 kg
GALLERY
Fine haze that lasts a very long time

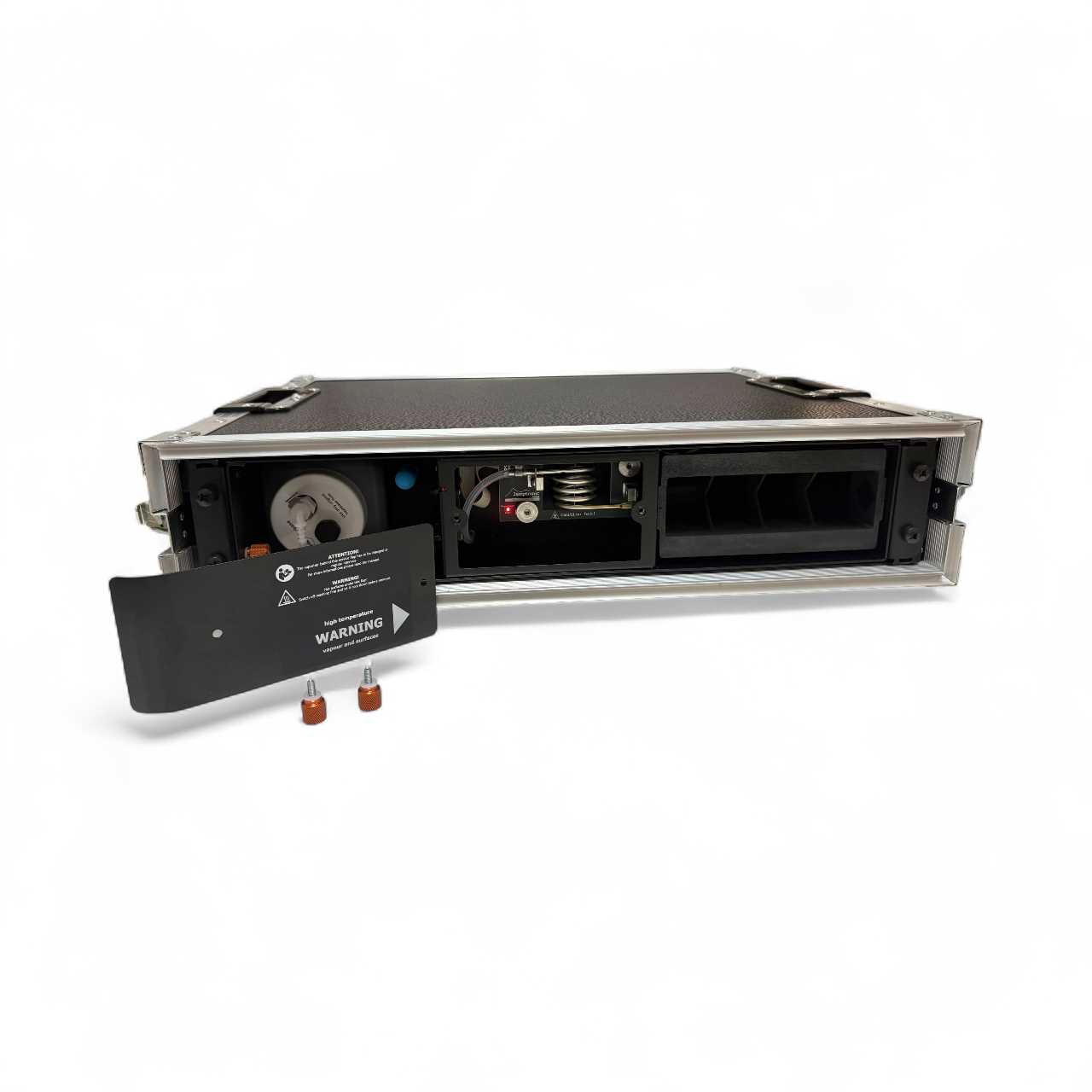

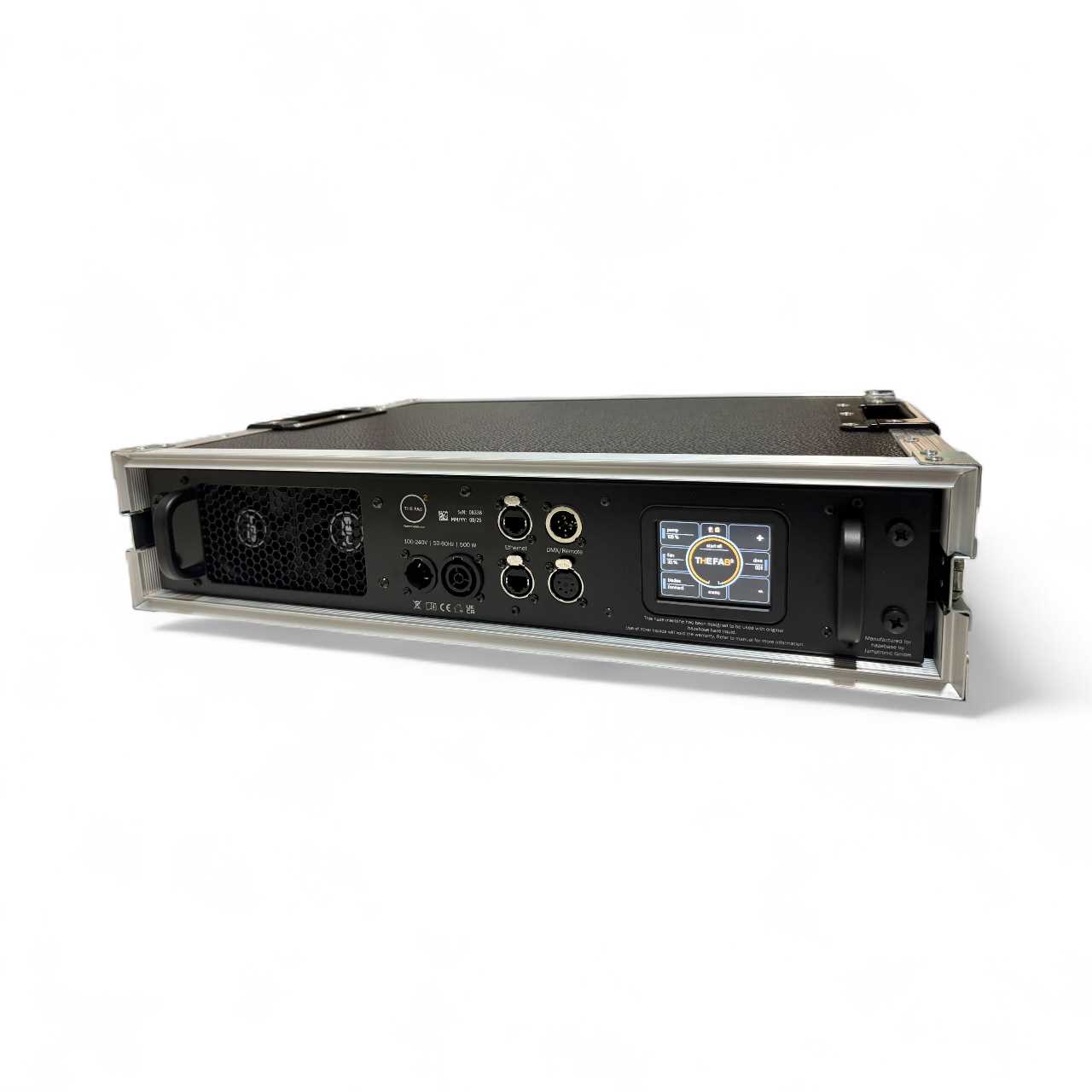

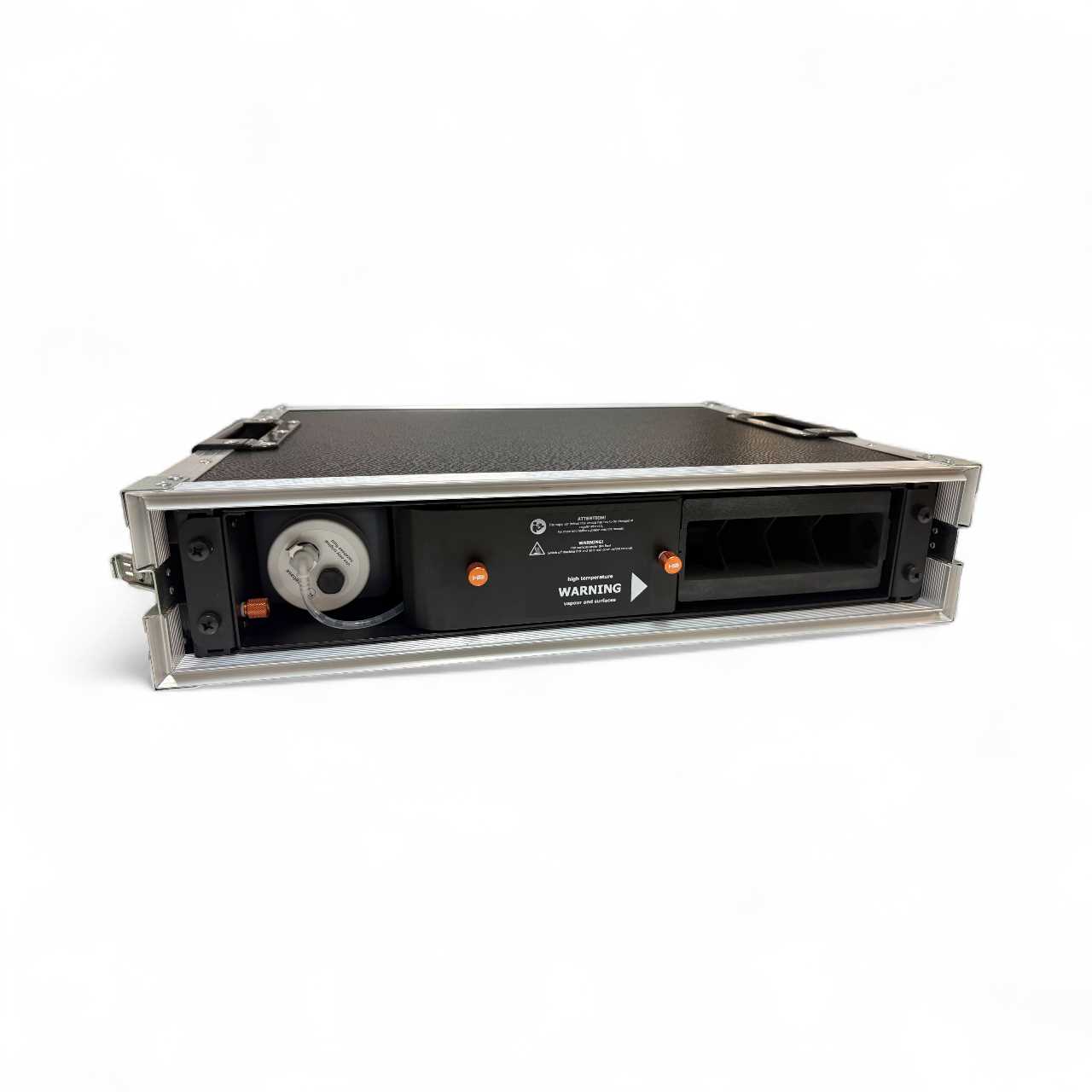

The Fab2 image.
The Fab2 image.
The Fab2 image.
